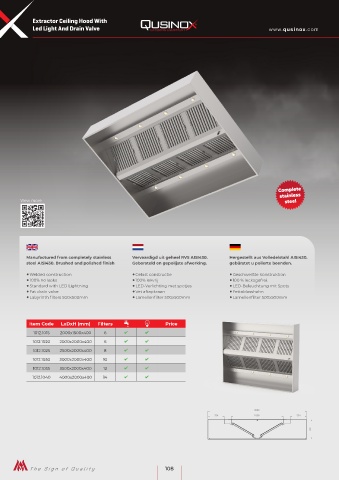

P. 108
Extractor Ceiling Hood With
R
Led Light And Drain Valve www.qusinox.com
Complete
stainless
View more steel
Manufactured from completely stainless Vervaardigd uit geheel RVS AISI430. Hergestellt aus Volledelstahl AISI430.
steel AISI430. Brushed and polished finish Geborsteld en gepolijste afwerking. gebürstet u polierte beenden.
• Welded construction • Gelast constructie • Geschweißte Konstruktion
• 100% no leaks • 100% lekvrij • 100 % leckagefrei.
• Standard with LED Lightning • LED-Verlichting met spotjes • LED-Beleuchtung mit Spots
• Fat drain valve • Vet aftapkraan • Fettablasshahn
• Labyrinth filters 500x500mm • Lamellenfilter 500x500mm • Lamellenfilter 500x500mm
Item Code LxDxH (mm) Filters Price
1012.1015 2000x1500x400 6 4 4
1012.1020 2000x2000x400 6 4 4
1012.1025 2500x2000x400 8 4 4
1012.1030 3000x2000x400 10 4 4
1012.1035 3500x2000x400 12 4 4
1012.1040 4000x2000x400 14 4 4
2000
334 1058 334
400
NOT:
Malzeme
108 Sac Ölçüsü: Adı Soyadı x İmza Tarih Ebat Adet Tolerans
x
Çizen Hakkı CİN 19.02.2022 0.5mm
Onay Tezcan GÜMÜŞ
Ölçek Ürün Adı : 1012.1030 - Davlumbaz 300x200x40cm Resim No 1 to 1
1:1 Parça Adı : 1012.1030 - Davlumbaz 300x200x40cm Abkant Kodu 2
